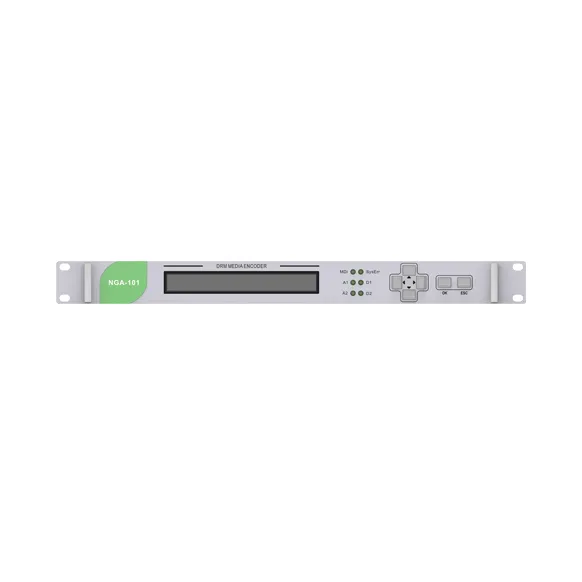

The Newglee NGA-101 DRM Media Encoder is a professional-grade digital broadcast headend designed to create, manage, and output standards-compliant Digital Radio Mondiale (DRM) multiplex. It provides an intuitive web interface for combining audio, text, images, and data services into multiplexed streams for transmission to DRM modulators.
End-to-End DRM Workflow: Streamlines creation, multiplexing, and output of DRM broadcasts.
Web-Based Management: Intuitive GUI for service configuration, multiplexing, and real-time monitoring.
Multi-Service Support: Combines audio, DRM text, MOT slideshows, and Journaline® interactive data.
Robust Output: MDI/DCP streaming with configurable error protection (PFT) for resilient transmission.
Hardware Integration: Dual analog/digital audio inputs, redundant networking, and front-panel diagnostics.
MDI/DCP AF: supported.
MDI/DCP PFT: different protection levels supported.
Modes: A, B, C, D compatible.
Modulation: 16QAM, 64QAM.
DRM Features
– Robustness Mode: A, B, C, D (DRM30);
– Standards: ETSI ES 201 980 DRM
DRM Features
– Protection: EEP/UEP with all coding rates and protection ratios
– Service types: Audio (USAC), DRM text, MOT slideshows (JPG/PNG), Journaline® interactive data
– Output Protocol: MDI/DCP (UDP) with AF/PFT modes
Interfaces (Input & Output)
– Analog Audio Inputs: 2 x Stereo Analog (XLR/TRS)
– Digital Audio Input: 2x AES/EBU(XLR)
– Ethernet: 2× 10/100/1000BASE-T (RJ-45) for management and data output (or remote data backup)
– USB: 1xUSB type A for device configuration or future feature expansion
Management
– Web: Integrated web console
– LCD: 2 x 40 front panel LCD for status monitoring
– SNMP
Physical & Environment
– Mounting: 1RU 19” rackmount chassis
– Dimensions (W x H x D): 438mm x 44mm x 330mm
Power
– Input: AC 110V - 240V @ 50/60Hz
– Typical Power Consumption: 20 watts
Environment
– Operating Temp: 0°C to 40°C
– Real-time thermal monitoring: supported
