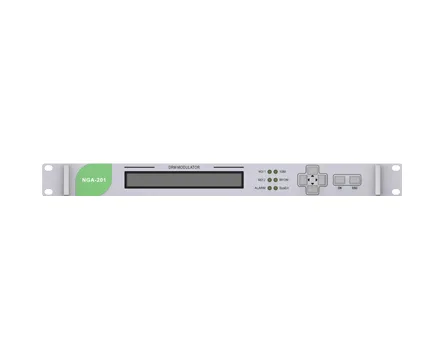

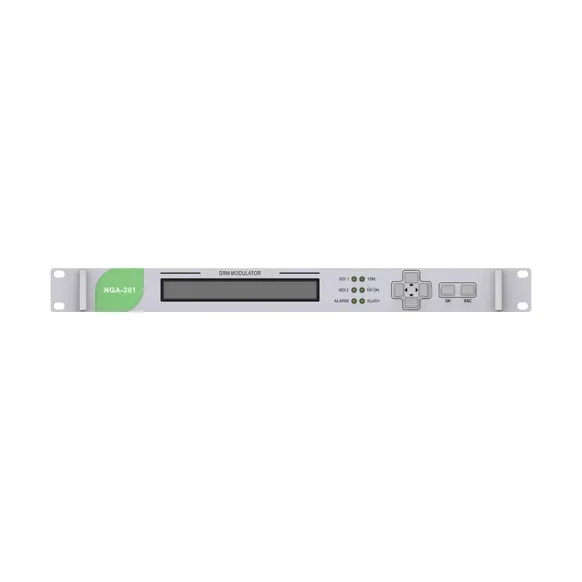

The Newglee NGA-201F DRM FM Modulator supports the DRM standard ETSI ES 201 980 and is designed to convert data streams from a media encoder into RF signals. It features modules for DRM baseband processing, digital signal synthesis, frequency conversion, DAC, RF output, audio signal input/output, monitoring system, and control panel.
Digital Pre-Distortion: Optimizes signal quality through compensation.
DRM Modulation Support: Uses Mode E modulation to generate standard RF signals from MDI/DCP streams.
High Performance Processing: Digital signal processing algorithms and Digital Pre-Distortion (DPD) to optimize system performance.
Frequency Synthesis: Direct digital frequency synthesis maximizes RF domain proximity, supporting the 87–108 MHz band.
Network Management: Supports remote control via Web, RS232/RS485, and firmware can be upgraded over the network.
Reliable Operation: GPS synchronization supports SFN/MFN operation, ensuring seamless long-term operation.
Spectrum Optimization: Advanced windowing and filtering algorithms ensure signal purity.
Dual MDI Input: MDI/DCP streams.
Modulation Parameters: Bandwidth 100kHz, Interleaving depth 0.6s.
Mode: Mode E.
Mapping: 4QAM, 16QAM.
Coding Rates: ¼ to 8/9.
Clock Sources: 10MHz internal/external, 1PPS sync.
Networking: Single/multi-frequency sync.
Reconfiguration: Dynamic.
Spectrum: ITU-R compliant.
PAPR Reduction: Built-in.
Outputs: RF, I/Q.
DRM Features
– Bandwidth: 100 kHz
– Modulation: 4QAM, 16QAM
– Protection: EEP/UEP with all coding rates and protection ratios
– Interleaving: 600ms
– SFN: Supported
– DRM DCP: FEC and PFT supported
– RF output accuracy: MER >50 dB, ACPR < -60 dBc
Signal Pre-Correction
– AM/AM, AM/PM distortion correction
– PAPR reduction
– Phase / envelope equalization
– Phase / envelope delay compensation
Interfaces (Input & Output)
– RF IN: 1x BNC for pre-corrected signal input, +5 to +10 dBm
– 10 MHz in: 1x BNC for reference input
– 10 MHz out: 1x BNC for reference output
– 1PPS in: 1x BNC for reference input
– 1PPS out: 1x BNC for reference output
– Ethernet: 1x 10/100 Base-T RJ45 for management
– MDI: 2* 10/100 Base-T RJ45 for IP DCP/MDI input
– RS232: 1x UART for Tx configuration
– RS485: 1 x RS485 for Tx configuration
– RF OUT: 1x BNC for direct RF output
Management
– Web: Integrated web console
– LCD: 2 x 40 front panel LCD for status monitoring
– SNMP
Physical & Environment
– Mounting: 1RU 19” rackmount chassis
– Dimensions (W x H x D): 438mm x 44mm x 330mm
– Weight : 3.5kg
Power
– Input: AC 176V-264V @ 50/60Hz
– Typical Power Consumption: 20 watts
