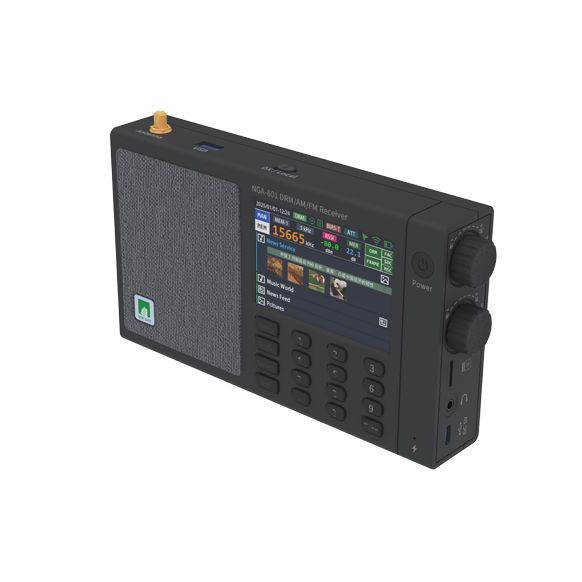

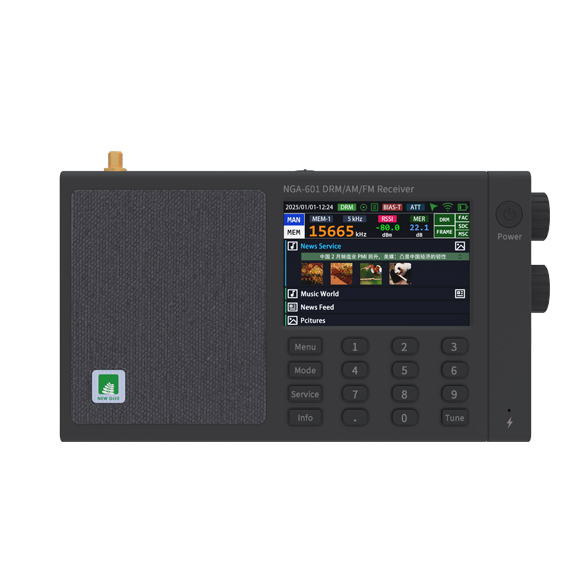

NGA-601 DRM/AM/FM Receiver

• Designed for Professionals

The NGA-601 is a next-generation DRM/AM/FM receiver tailored for digital broadcast operators, radio stations, and regulatory bodies. It provides a powerful, flexible, and portable solution for professional broadcast monitoring and analysis.

• Advanced DRM Capabilities

The receiver integrates support for the latest xHE-AAC audio standard, ensuring superior audio quality reception. It also supports rich DRM data services like Journaline and MOT Slideshow, alongside the vital Emergency Warning Function.

• Comprehensive Reception

This versatile platform supports advanced DRM, AM, and FM reception across the critical MF, HF, and VHF Band II frequencies. It allows users to effectively monitor and analyze both current and future mainstream broadcast signals.

• Powerful Analysis and Data Handling

A dedicated “Expert Mode” provides real-time technical metrics including MER and BER for in-depth signal assessment. Features like receive logging, DCP/MDI stream saving/streaming (Max model), and GPS/BeiDou positioning aid professional analysis and field operations.

• Intuitive Interface and Connectivity

The NGA-601 features an intuitive touchscreen and physical controls for easy operation. An SMA external antenna connector, adjustable attenuation, and robust interfaces like USB and Micro SD support diverse professional setups.

• Broadcast Reception

• DRM Broadcast: MF (520-1710kHz), HF (2.3-26.1MHz), VHF Band II (87.5-108MHz)

• ETSI ES 201 908 standard compliant

• AM Broadcast: MF (520-1710kHz), HF (2.3-26.1MHz)

• FM Broadcast: VHF Band II (87.5-108MHz)

• External antenna connector (no internal antenna)

• Adjustable Attenuation

• Manual / Memory Tuning Modes

• 1kHz/5kHz/9kHz/10kHz/100kHz Frequency Steps

• Direct Frequency Entry

• Data Display & Recording

• DRM Text Messages

• DRM Journaline

• DRM MOT Slideshow

• Expert Mode: RSSI, MER, DRM Channel Parameters

• Save DRM MDI Stream

• Save DRM Receive Log

• Screenshots

• Real-time GPS/BeiDou Location Reception

• 3.5” 320x480 High-Brightness IPS Full-View Capacitive Touchscreen

• Controls

• Power Button

• Function Buttons (x17)

• Rotary Encoders (x2)

• Interfaces

• SMA External Antenna Input

• USB Type-A Port (for GPS/BDS receiver)

• USB Type-C Port (Charging & Firmware Update)

• 3.5mm Headphone Jack

• Micro SD Card Slot

• Antenna Attenuation Control (Slide Switch)

• Audio Output

• 5W Mono Cavity Speaker

• 3.5mm Headphone Output

• Wireless Connectivity

• Wi-Fi (Wireless LAN)

• Supports MDI Streaming via Wi-Fi

• Battery & Power

• 2x 18650 Rechargeable Li-ion Batteries

• Coulomb Meter for Power Gauging

• User-Replaceable Batteries

• USB-C Charging

• Supports Low-Power Sleep Mode

• Dimensions & Weight

• Dimensions: 190mm x 110mm x 36mm (W/H/D)

• Weight: TBD (without batteries)
