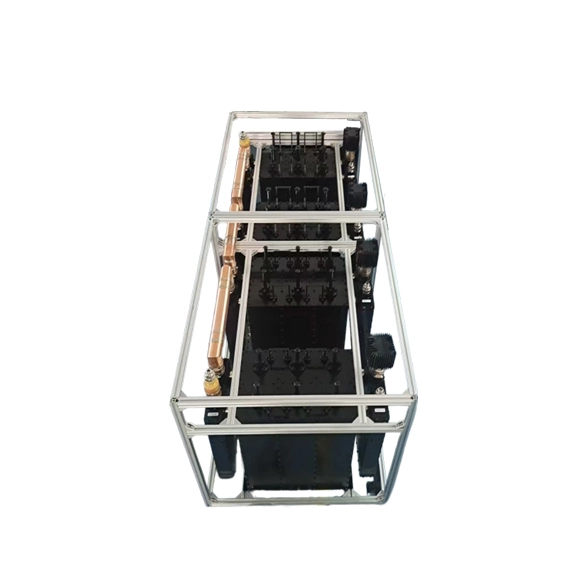

The NGT-CX-4-2000 4x2kW FM Full Bridge Combiner integrates advanced full-bridge architecture and premium materials to deliver high-power FM signal combining with minimal loss. Designed for broadcast systems requiring scalability, it features a reserved broadband port for seamless multi-frequency expansion and ensures ≤1.1 VSWR across narrowband and broadband channels. Its compact, temperature-stabilized design operates reliably in harsh conditions (-10℃ to +55℃), while integrated filtering and ≥30dB isolation enhance signal clarity. Ideal for high-power FM stations, this combiner combines robust performance with future-ready flexibility.
Constructed with premium materials including purple copper, silver-plated brass, and high-quality aluminum alloy for durability and efficient signal transmission.
Full bridge design with integrated filtering and reserved broadband port, enabling easy multi-frequency expansion and stable performance.
Low insertion loss (≤0.6dB per unit) and high isolation (≥30dB between narrowband and broadband channels) for minimal signal degradation.
Compact structural design with excellent temperature compensation (≤1.5kHz/℃) and low power temperature rise (≤12℃), ensuring reliability in varied environments.
Supports 2kW narrowband input power and operates across 87–108MHz, adaptable to user-defined working frequencies.
Robust environmental tolerance (-10℃ to +55℃, ≤90% humidity, 86–106kPa pressure) for versatile deployment.
| Multiplexer structure | Full bridge structure, the 4-way combiner includes 4 bridge units and reserves a broadband port. |
| Power level | 2kW |
| Frequency range | 87 - 108MHz |
| Working frequency | Determine based on actual user needs. |
| Narrowbandmaximuminput power | ≥ 2kW |
| Narrowband standing wave ratio | ≤ 1.1 |
| Narrowband bandwidth | 600kHz |
| Narrowband insertion loss and out of band selectivity | Single 4-way combiner unit. |
| Narrowband insertion loss and out of band selectivity | f0≤ 0.6dB |
| f0±300kHz ≤ 0.65dB | |
| For each additional level of the multiplexer, itsinsertion loss increases by no more than 0.09dB. | |
| Broadband maximum input power | ≤ 2kW |
| Broadband standing wave ratio | ≤ 1.1 |
| Isolation from narrowband to broadband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Isolation from broadband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Isolation from narrowband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Input port type(Up) | 1-5/8"SMS |
| Output porttype(Up) | 1-5/8"SMS |
| Temperature coefficient | ≤1.5kHz/C |
| Full power temperature rise | ≤12℃ |
| Workenvironment | Temperature:-10℃-+55℃,Relative humidity:≤90%,Atmospheric pressure:86kPa-106kPa. |
