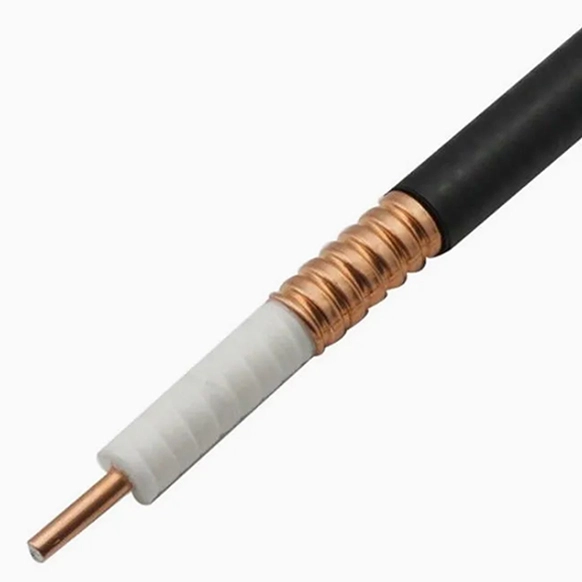

The SDY-50-22 Feeder Cable is a premium coaxial solution engineered for high-power signal transmission in demanding communication networks. Featuring helix-corrugated copper conductors and a PE-insulated dielectric, it minimizes signal loss across medium wave, FM, and TV broadcasting systems. With a peak power handling of 73kW and a cutoff frequency of 6GHz, it excels in high-frequency applications like radar and satellite ground stations. Its lightweight design (860 kg/km) and flexible bending radii simplify installation, while a robust temperature tolerance (-55°C to +85°C) ensures uninterrupted performance in extreme climates. Ideal for low-VSWR, high-reliability connectivity.
Peak Power Versatility: Supports up to 6kW (medium wave), 3kW (FM), and 300W (TV decimeter wave) for diverse broadcasting applications.

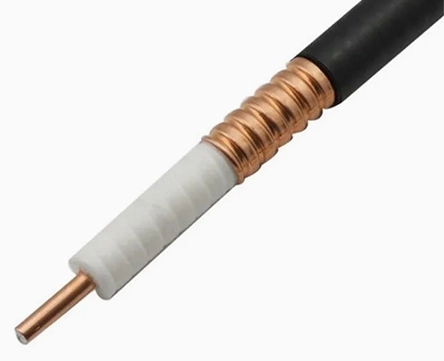

Durable Construction: Double helix corrugated copper tubes (inner/outer) enhance mechanical strength and signal integrity.
Broad Compatibility: Low attenuation and VSWR enable use in radar, satellite stations, and microwave relay systems.
Flexible Installation: Compact design with 90mm (single) and 300mm (multiple) bending radii for adaptable deployment.
Extreme Resilience: Operational temperature range from -55°C to +85°C ensures reliability in harsh environments.
High-Frequency Performance: Stable 50Ω impedance and 3GHz max frequency for consistent signal transmission.
| Recommended peak power rating and application scope | |||
| Peak power rating | Wave band | Frequency(Channel) | Works with |
| ≤ 6kW | Medium wave | 550kHz - 1600kHz | Broadcast transmitter |
| ≤ 3kW | FM | 87MHz - 108MHz | FM transmitter |
| ≤ 300W | Decimeter wave | 1CH - 68CH | TV transmitter |
| Physical Dimensions | |||
| Inner Conductor | Helix Corrugated copper tube | 9.2 mm | |
| Dielectric | PE strip | 20.8 mm | |
| Outer conductor | Helix Corrugated copper tube | 25.4 mm | |
| Jacket | PE | 29.0 mm | |
| Cable Weight | 860 Kg/Km | ||
| Minimum bending radius, single | 90 mm | ||
| Minimum bending radius, multiple | 300 mm | ||
| Permissible temperature range, installation | -40°C - +60°C | ||
| Permissible temperature range, operation | -55°C - +85°C | ||
| Electrical Characteristics | |||
| Impedance | 50Q±0.5n | ||
| Velocity | 93% | ||
| Maximum operating frequency | 3.00 GHz | ||
| Cut off frequency | 6.00 GHz | ||
| Peak power rating | 73 kW | ||
| DC breakdown voltage | 2.7 kV | ||
| DC-resistance | |||
| Inner conductor | 0.40 Ω/km | ||
| 0uter conductor | 0.12 Ω/km | ||
| Capacitance | 71 pF/m | ||
SDY-50-22 is designed for medium-power RF transmission, delivering stable signal performance for FM, medium-wave, TV broadcasting, radar, and satellite applications. Contact Newglee to choose the right feeder cable, connector options, and matching FM accessories for your broadcast system.
