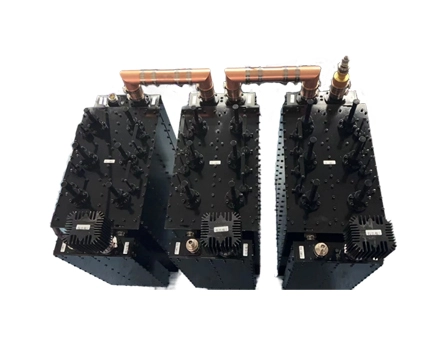

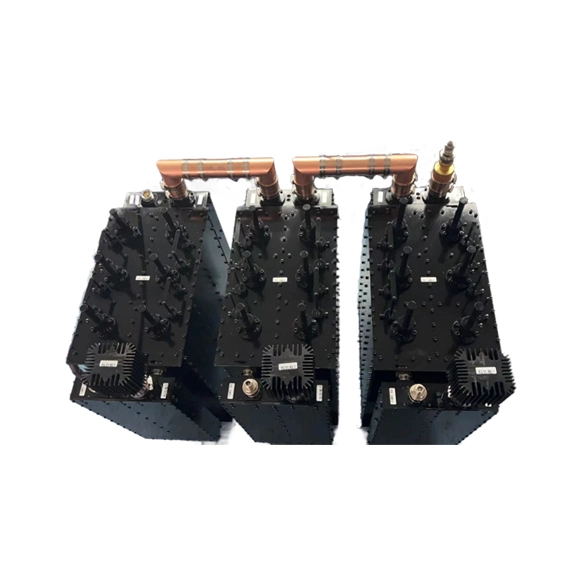

The Newglee NGT-CX-3-1000 3x1kW FM Full Bridge Combiner combines three 1kW FM signals into a single output with minimal loss. Designed for broadcast systems, it employs a full-bridge structure with integrated filtering and a reserved broadband port for future expansion. Key specifications include a frequency range of 87–108MHz, ≤0.65dB insertion loss, and ≥30dB isolation between ports. Built with premium materials like silver-plated brass, it ensures reliability in harsh environments (-10℃ to +55℃, ≤90% humidity). Ideal for high-power FM stations requiring scalability and stable performance.
High-Quality Materials: Constructed with purple copper, silver-plated brass, and aluminum alloy for durability and performance.
Low Loss & High Isolation: Features ≤0.65dB insertion loss and ≥30dB isolation between narrowband/broadband ports.
Compact Full-Bridge Design: Integrates three bridge units with a reserved broadband port for expandability.
Temperature Resilience: Excellent compensation ensures ≤12℃ temperature rise under full power and ≤1.5kHz/℃ coefficient.
Broad Compatibility: Operates in 87–108MHz range with adjustable working frequency for user flexibility.
Robust Power Handling: Supports up to 1.2kW input power per channel with VSWR ≤1.1.
| Multiplexer structure | Full bridge structure, the 3-way combiner includes 3 bridge units and reserves a broadband port. |
| Power level | 1000W |
| Frequency range | 87 - 108MHz |
| Working frequency | Determine based on actual user needs. |
| Narrowbandmaximuminput power | ≥ 1.2kW |
| Narrowband standing wave ratio | ≤ 1.1 |
| Narrowband bandwidth | 600kHz |
| Narrowband insertion loss and out of band selectivity | Single 3-way combiner unit. |
| Narrowband insertion loss and out of band selectivity | f0≤ 0.6dB |
| f0±300kHz ≤ 0.65dB | |
| For each additional level of the multiplexer, itsinsertion loss increases by no more than 0.09dB. | |
| Broadband maximum input power | ≤ 1.2kW |
| Broadband standing wave ratio | ≤ 1.1 |
| Isolation from narrowband to broadband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Isolation from broadband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Isolation from narrowband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Input porttype(Up) | 7/16" (L29) female |
| Output port type (Up) | 1-5/8" SMS |
| Temperature coefficient | ≤1.5kHz/℃ |
| Full power temperature rise | ≤12℃ |
| Workenvironment | Temperature:-10℃-+55℃,Relative humidity:≤90% Atmospheric pressure:86kPa-106kPa. |
