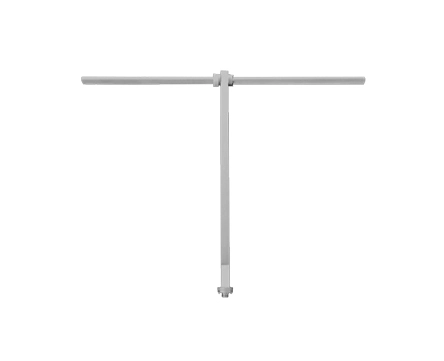

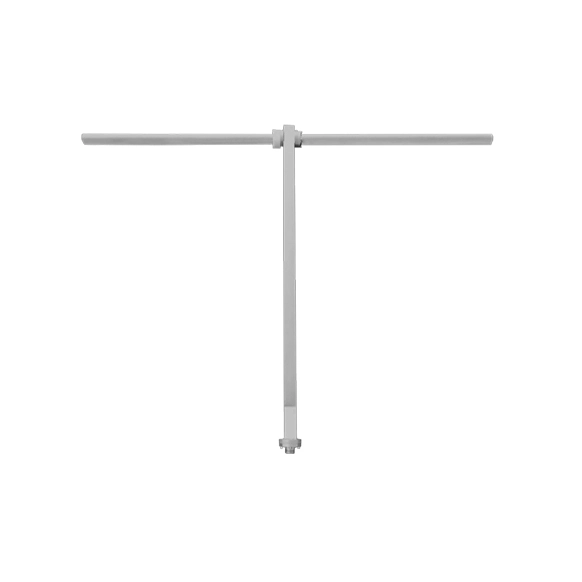

The NGT-TX-Y01 FM Single Dipole Antenna by Newglee is designed for high-efficiency FM broadcasting. Featuring a stainless-steel structure with silver-plated conductors, it ensures durability and optimal signal radiation. The antenna supports multi-layer configurations (2–8 layers), delivering adjustable gain up to 10.5dB for diverse coverage needs. With a 87–108MHz frequency range, 10kW power capacity, and robust weatherproofing, it suits outdoor installations in harsh environments. Includes power dividers, feeders, and installation kits for seamless deployment. Ideal for radio stations requiring reliable, high-performance transmission solutions.
Durable Construction: Radiating element made of 304 stainless steel with silver-plated copper inner conductor for corrosion resistance and longevity.
High Power Handling: Supports 0.1–10kW power input, ideal for FM broadcasting across varying transmission demands.
Wide Frequency Range: Operates efficiently within 87–108MHz, ensuring compatibility with standard FM bands.
Multi-Layer Configurations: Offers 2 to 8 layers with incremental gain up to 10.5dB for enhanced signal coverage.
Robust Weather Resistance: Withstands wind speeds up to 200km/h and operates in extreme temperatures (-40°C to 60°C).
Integrated Safety: Direct grounding for lightning protection and low SWR (<1.1) for stable signal transmission.
| Array parameters | ||||
| Layer | Phase | Gain(dB) | Weight(kg) | Height(m) |
| 1 | 1 | 2 | 10 | 1.5 |
| 2 | 1 | 4.5 | 20 | 3 |
| 3 | 1 | 6.5 | 30 | 4.5 |
| 4 | 1 | 7.5 | 40 | 6 |
| 6 | 1 | 9.5 | 60 | 9 |
| 8 | 1 | 10.5 | 80 | 12 |
| Electrical performance | |
| Frequency range | 87- 108MHz |
| Characteristic impedance | 50Ω |
| Standing wave ratio(SWR) | < 1.1 (Specify frequency） |
| Gain | 2dB(Single element) |
| Maximum power handling | 0.1- 10kW |
| Polarization mode | Vertical polarization |
| Input interface | L27/IF45/IF70/IF110 |
| Lightning protection | Directly grounded |
| Ambient temperature | -40- 60℃ |
| Mechanical performance | |
| Antenna material | Radiating element: 304 stainless steel inner conductor with silver-plated copper. |
| Wind resistance | 200km/h |
| Dimensions | 1360*1060*60mm |
| Weight | 10kg (Single element) |
| Pole diameter | Ø50mm-Ø110mm |
