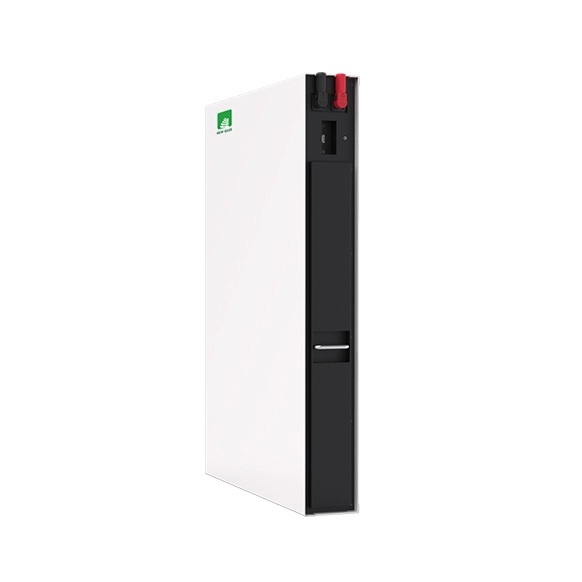

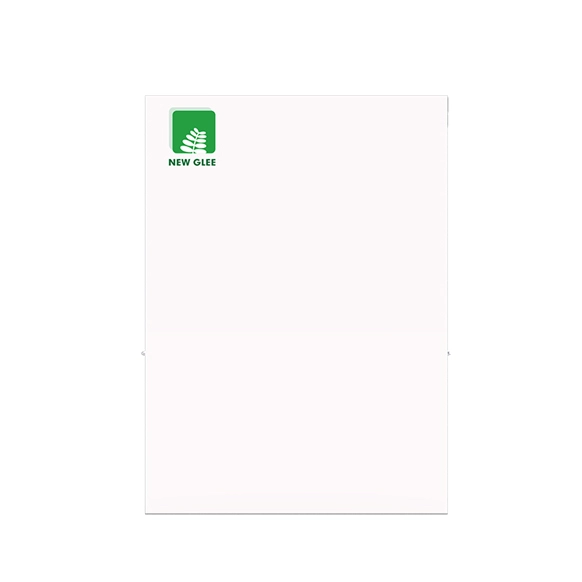

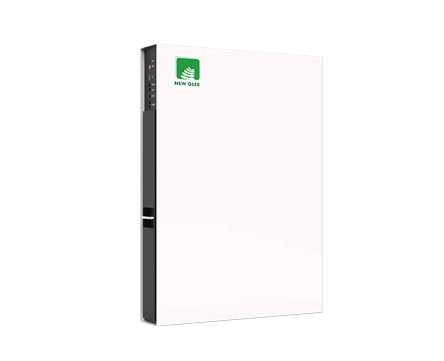

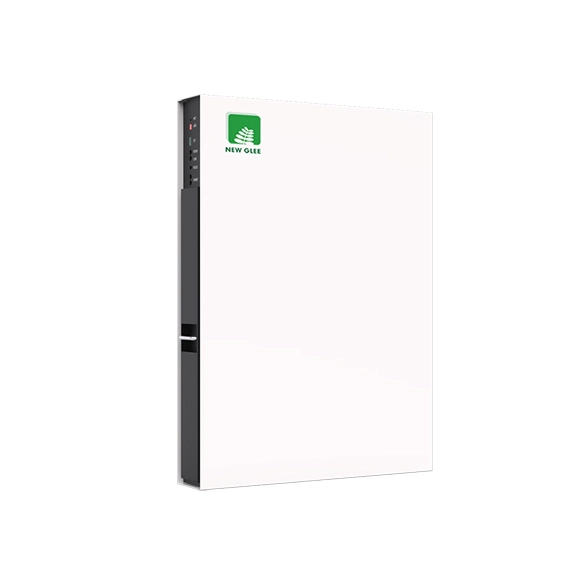

The 51.2V 16S LiFePO₄ wall-mounted battery is a 10.24kWh energy storage solution designed for scalability and durability. With a compact, ultra-thin design, it supports parallel connections of up to 16 units (160kWh total) and features automatic address allocation for hassle-free expansion. Its high discharge/charge current (100A) and 6000+ cycle lifespan ensure long-term reliability. Compliant with CE, UN38.3, and IEC84319 standards, it operates efficiently across a wide temperature range (-20°C to 85°C). The plug-and-play terminal design, IP20 rating, and smart communication protocols make it ideal for residential or commercial energy systems.
High Energy Capacity & Efficiency: Offers 10.24 kWh nominal energy with 51.2V voltage and 200Ah capacity, ensuring reliable power for residential or commercial energy storage.
Long Cycle Life: Exceeds 6000 cycles at 25°C with high-power charging/discharging (100A), maintaining performance over 10+ years of designed lifespan.
Scalable Parallel System: Supports up to 16 units in parallel (160kWh total), featuring automatic address allocation for simplified expansion.
Robust Safety & Compliance: Certified with CE, UN38.3, and IEC84319, ensuring safety under IP20 protection and wide temperature tolerance (-20°C to 85°C).
User-Friendly Design: Plug-in terminal for quick installation, CC-CV charge mode, and communication via CAN/RS485/RS232 for seamless integration.
| Nominal Energy (kWh) | 10.24 |
| Nominal Voltage(V) | 51.2 |
| Nominal Capacity (Ah) | 200 |
| IP Rating | IP 20 |
| Output Power (kW) | 5.12 |
| Voltage Range (V) | 43.2~58.4 |
| Charge Voltage(V) | 56.8~58.4 |
| Charge Current(A) | 100 |
| Discharge Current(A) | 100 |
| Charge Mode | CC-CV |
| Communication | CAN/RS485/RS232 |
| Charge Temperature | 0-55℃ |
| Discharge Temperature | -20-55℃ |
| Designed Life | 10+Years |
| Cycle Life | >6000(@25℃,80%DOD) |
| Weight (kg) | 92 |
