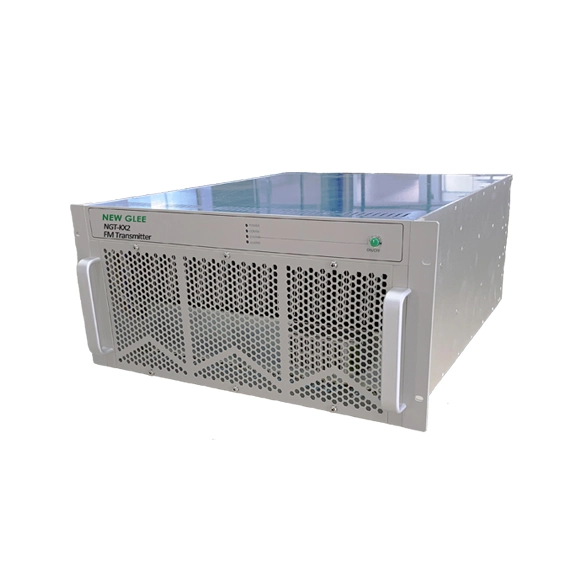

The NGT-KX2 FM Transmitter is a high-performance 2000W broadcasting solution designed for FM, CDR, and DAB standards. Featuring adjustable frequency and power, it ensures efficient signal transmission. With an intuitive LCD interface, efficient cooling, and a robust protection system, it delivers stable, high-quality broadcasts for FM stations, emergency alerts, and campus radio networks.
High-Power Output – 2000W FM transmitter with adjustable frequency and power for flexible broadcasting applications.
Wide Compatibility – Supports FM, CDR, DAB standards with MONO, STEREO, MPX, AES/EBU, and SCA/RDS inputs.
High-Efficiency Amplification – Uses Ampleon LDMOS technology, achieving over 50% efficiency under optimal RF conditions.
Advanced Protection System – Automatic alarms for overcurrent, overvoltage, undervoltage, overheating, overload, and VSWR issues.
User-Friendly Interface – ARM-based processor with LCD display for real-time monitoring and system control.
Flexible Power Supply – Supports both AC 220V and AC 380V for enhanced operational stability.
| L/R Input | |
| Physical interface | XLR female |
| Number | 2(1x R &1xL) |
| Impedance | 10k or 600Ω optional |
| Input level | -13 to +13dBu |
| MPX Input | |
| Physical interface | BNC female |
| Number | 1 |
| Impedance | 10k |
| Input level | -13 to +13 dBu |
| SCA/RDS Input | |
| Physical interface | BNC female |
| Number | 2 |
| Impedance | 2.2kΩ unbalanced |
| Subcarier level | -6 to +13dBu |
| AES/EBU Input | |
| Physical interface | XLR female |
| Number | 1 |
| Impedance | 110Ω balance |
| Input level | -15 to 0dBFS |
| RF Output | |
| Physical interface | 1-5/8" SMS |
| Number | 1 |
| Impedance | 50Ω |
| Frequency range | 87.5-108MHz |
| Rated output power | 63dBm (2000W) |
| Modulation type | Mono, Stereo, Multiplex |
| Carrier Tolerance | ±100Hz |
| Residual Radiation | <-70 dB(L&R) |
| Parasitic AM Noise | <-50dB |
| Distortion | <0.5% |
| SNR | ≥85dB |
| Frequency Response | ±0.5dB (No emphasis,No de-emphasis) |
| Stereo Seperation | >50dB(30Hz~15kHz) |
| Level Difference | <0.05dB(L&R) |
| Pilot Frequency Offset | ±1Hz |
| Residual Component | <-60 dB@38KHz |
| Frequency Offset | MAX±75KHz |
| Pre-emphasis mode | 0/50/75uS |
| RF Monitor Output | |
| Physical interface | BNCfemale |
| Number | 1 |
| Impedance | 50Ω |
| Output Level | Approx. -50dB |
| Serial Interface | |
| Physical interface | DB-9M |
| Number | 1 |
| Interface standard | RS485 Half Duplex |
| Management | |
| Port | 10/100 Base-T Ethernet |
| Number | 1 |
| Physical interface | RJ45 |
| Protocol | Web/SNMP |
| Power | |
| Input voltage | AC 220V±20% or AC 380V±20%, 50Hz±10% |
| Power consumption | Max 4000W |
| Environment | |
| Working temperature | -20℃~50℃ |
| Working humidity | 10-95%(non-condensing) |
| Atmospheric Pressure | 86kPa-106kPa |
| Physical | |
| Dimension (HxWxD) | 220×483×394 mm |
| Weight | ≤55Kg |
| Cooling | Forced, with internal fan |
